Powerflex - Cupra Leon MK4 KL 4WD (Road Series)

PowerAlign Wheel Mounting Guide Pin
PF99-514-15

Available singularly to suit a specific vehicle or as a handy 4-piece workshop kit, our new PowerAlign Wheel Mounting Guide Pins are designed to allow the safer mounting and easy alignment of heavy alloy wheels on most common cars to use lug bolts.
OEM Part Number: 9A700773300
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.
The individual pins come supplied in a reusable twist tube and the 4-piece workshop kit is supplied with a steel storage case for pride of place in your toolbox.
Simply thread the appropriate pin size into one of the bolt holes on the wheel hub. The wheel can then be lifted and placed on the guide pin, and easily slid into place on the hub; keeping the bolt holes aligned for other bolts to be inserted and tightened.
This reduces the awkward and back-straining process of holding the wheel in place with one hand whilst lining up and threading in the first bolt; thus, reducing the risk, hassle, and strain of mounting wheels.
Proven using simulated and real-world testing, the new mounting pins use high-strength CNC-machined AISI 303 Stainless Steel, some 50% stronger than plated mild steel, to ensure durability and resilience in a workshop environment, and are supplied with colour-coded 3D-printed protective sleeves for ease of identification and anodised 2011-T6 aluminium caps to absorb knocks and prevent damage to the wheel, unlike others on the market.
Please click here to view all sizes available and for a wider-reaching application list in the form of a new user-friendly drop-down search function.

Front Wishbone Front Bush
PFF85-501

For a camber adjustable bush use PFF85-501G.
OEM Part Number: Bush = 1K0407182 / 1K0407182A / 5Q0407182 / 5Q0407182B
OEM Part Number: Arm = 1K0407152BG / 5R3407151B / 5R3407152B (Pressed Steel)
OEM Part Number: Arm = 1K0407151BF / 1K0407152BF (Cast) / 8J0407151D (Aluminium)
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Wishbone Front Bush Camber Adjustable
PFF85-501G

This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 1K0407182A / 5Q0407182 / 5Q0407182B
OEM Part Number: Arm = 1K0407152BG / 5R3407151B / 5R3407152B (Pressed Steel)
OEM Part Number: Arm = 1K0407151BF / 1K0407152BF (Cast) / 8J0407151D (Aluminium)
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Wishbone Rear Bush, Caster Adjustable
PFF3-902G

Using a Black 95A durometer ball moulded to an all-new offset stainless steel sleeve and machined nylon cups, this new and improved design maximises performance and articulation while retaining the benefit of on-car adjustability of caster by +/- 0.33 degs.
OEM Part Number: Bush = 8S0407183B / 81A407183 / 5Q0407183L
OEM Part Number: Arm = 8S0407151B / 81A407151C
OEM Part Number: Arm = 8S0407151D / 81A407152C
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Wishbone Rear Bush
PFF85-802

Fits steel subframes and steel wishbones only. This part features an offset bore to the sleeve to match the caster offset of the OE bush. For further caster adjustment for track/motorsport applications, use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183 / 5Q0407183N
OEM Part Number: Arm = 5C0407151 / 5Q0407153 / 1K0407151BE / 1K0407152BE
OEM Part Number: Arm = 81A407151C / 81A407152C / 5R3407151B / 5R3407152B
Size
65mm
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Anti Roll Bar Bush 24mm
PFF85-803-24

Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303N / 5Q0 411 303 N
OEM Part Number: 5Q0411303AA / 5Q0 411 303 AA
OEM Part Number: 5Q0411303R / 5Q0 411 303 R
Size
24mm
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Anti Roll Bar Bush 25mm
PFF85-803-25

Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303AB / 5Q0 411 303 AB
Size
25mm
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
OEM Part Number: Arm = 5Q0501529F / 5Q0 501 529 F
OEM Part Number: Arm = 5Q0505311C / 5Q0 505 311 C
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Lower Track Rod Inner Bush
PFR85-812

OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Upper Wishbone Outer Bush
PFR85-513

OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
OEM Part Number: Bush = 1K0505203A / 1K0 505 203 A
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G

PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D / 1K0505323N / 1K0 505 323 N
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Bush = 1K0505203A / 1K0 505 203 A
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Upper Wishbone Inner Bush
PFR85-514

OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
OEM Part Number: Bush = 1K0505279A / 1K0 505 279 A
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Anti Roll Bar Bush 19.6mm
PFR85-815-19.6

OEM Part Number: 5Q0511305AR
OEM Part Number: 5Q0511305BK
OEM Part Number: 5Q0511305BC / 5Q0511305BN
Size
19.6mm
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Anti Roll Bar Bush 20.7mm
PFR85-815-20.7

OEM Part Number: 5Q0511305AS
OEM Part Number: 5Q0511305BD
Size
20.7mm
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Anti Roll Bar Bush 21.7mm
PFR85-815-21.7

OEM Part Number: 5Q0511305AT /5Q0511305BF
OEM Part Number: 5Q0511305BA / 5Q0511305BE
OEM Part Number: 8V0 511 305 A / 8V0511305A
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Trailing Arm Bush
PFR85-816

OEM Part Number: 5Q0505541A
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Lower Arm Outer Bush
PFR85-817

OEM Part Number: 1K0505553A / 1K0 505 553 A
OEM Part Number: 5Q0505553 / 5Q0 505 553
OEM Part Number: 5QD505553 / 5QD 505 553
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Lower Torque Mount Small Bush
PFF3-1320

Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket with voids, see part number above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket without voids use PFF3-1324. For a cast bracket use PFF3-1321.
OEM Part Number: 5Q0 199 855 AD
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Lower Torque Mount Small Bush
PFF3-1324

Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket without voids, see part numbers above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket with voids use PFF3-1320. For a cast bracket use PFF3-1321
OEM Part Number: 5Q0 199 855 AG
OEM Part Number: 5Q0 199 855 AH
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Lower Torque Mount Small Bush
PFF3-1325

PFF3-1325 Lower Torque Mount Bush is made from our stiffest Black 95A material to provide a durable replacement for the factory rubber bush to give road or tuned vehicles a sharper throttle response and more positive gear-change without compromising ride quality and NVH. An increase in stiffness by 50% over the worn OE rubber bush helps to reduce excessive engine movement caused by the torque reaction of the engine during acceleration and deceleration, one of the biggest causes of wheel-hop on tuned FWD or front-engined vehicles. Please check which type of bracket is fitted to the vehicle before ordering. See the part numbers above and photos below for reference.
OEM Part Number: 5Q0199855J
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Subframe Front Mounting Bush
PFR85-827

This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location. For Seat Leon Mk 3 models, only for 4WD variants.
OEM Part Number: 5Q0 505 145 F
OEM Part Number: 5Q0 505 145 D
OEM Part Number: 5Q0 505 145 J
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Rear Subframe Rear Mounting Bush
PFR85-828

This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location. For Seat Leon Mk 3 models, only for 4WD variants.
OEM Part Number: 5Q0 505 145 E
OEM Part Number: 5Q0 505 145 K
OEM Part Number: 5Q0 505 145 H
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

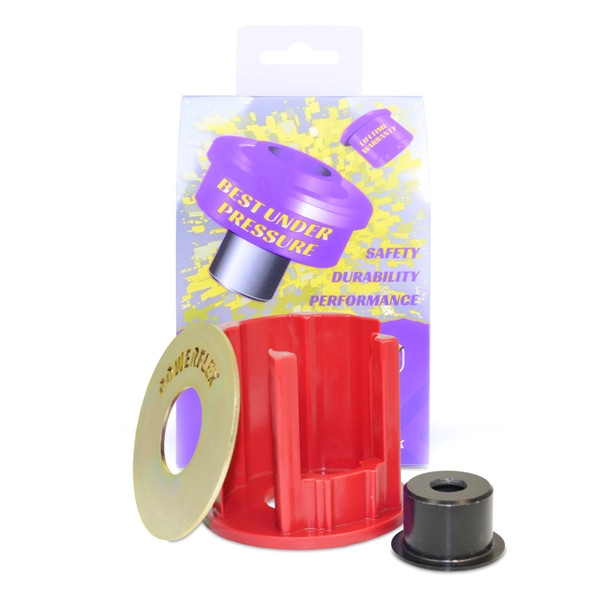

Lower Engine Mount Insert (Large)
PFF85-830

OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Lower Engine Mount Insert (Large) Track Use
PFF85-830P

Suitable for higher powered cars and track cars, using a stiffer material which helps further reduce engine movement over fitting the standard PFF85-830 insert, being a stiffer material additional noise and vibration may be felt.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Lower Engine Mount Hybrid Bush (Large) - Road
PFF85-831

PFF85-831 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

Front Lower Engine Mount Hybrid Bush (Large) - Fast Road/Track
PFF85-831P

PFF85-831P replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. This part is made in our Purple Shore A 80 for vehicles running increased power or that see occasional track use.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
Product Pricing Information
The prices shown on our website are per bush.
To get the total pack price you will need to multiple this price by the number of bushes per vehicle.

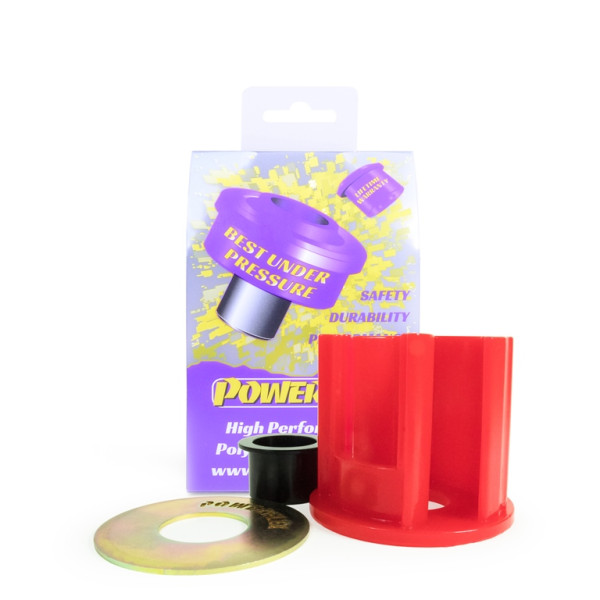

Lower Engine Mount (Large) Insert
PFF85-832

OEM Part Number: 5Q0198037B / 5Q0 198 037 B

OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J

OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J

PFF85-802 fits steel subframes only
PFF3-902G fits steel and aluminium subframes
PFF85-830is an insert for OEM part number 5Q0198 037 A
PFF85-831 is a complete bush for OEM part number 5Q0198 037 A
PFF85-832 is an insert for OEM part number 5Q0198 037 B
PFF85-833 is a complete bush for OEM part number 5Q0198 037 B
